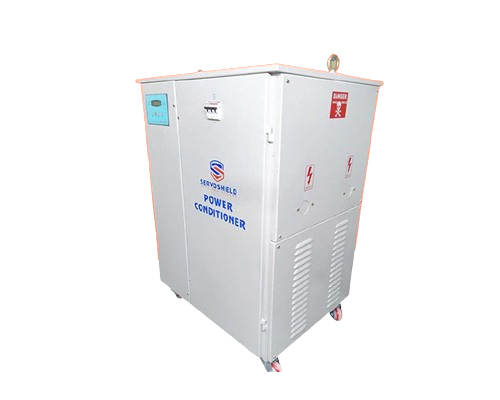

Power Conditioner (Servo + UIT)

The Power Conditioner (Servo + UIT) protects and enhances electronic equipment. It provides stable power supply, safeguards against voltage fluctuations, power surges, and electrical noise. The voltage regulation feature prevents equipment damage, while the uninterruptible power supply function offers backup power during outages. Suitable for various applications, this power conditioner ensures optimal performance and protection for your devices. Invest in the Power Conditioner (Servo + UIT) for peace of mind.

Know More About Products

Specifications

  • Input Voltage Range : 300.460V AC 3-ph 50hz/60hz ph-ph, 340-480V AC,360-460 V AC
  • Output : 415/220V as per requirement
  • Insulation : class F
  • Speed Of Correction : 60V/sec
  • Response Time : 10 milliseconds
  • System Connections : Delta/Star or Star / Delta or Star / Star
  • Ratios : 1:1 and 2:1
  • Regulation : Better than 3.5%
  • Power Factor : 0.75 Lead to 0.75 Lag
  • Di-Electric Strength : 3KV for 60 sec
  • Insulation Resistance : Better than 1000 Mega Ohms
  • Coupling Capacitance : : 0.01 PF for 100 Db
  • Leakage Current : Less than 20 Micro Amps
  • Construction Standards : As per IS 2026 Part I & II
  • Type Of Execution : Closed Type
  • Operating Temperature : 0° C to 45° C
  • Type Of Cooling : Natural air/Forced air

Applications

  • CNC Machines
  • Scientific Equipments
  • Textile Machinery
  • Bio-Medical Equipments
  • Telecommunication Equipments
  • Printing Machinery
  • Elevators
  • Industrial Applications
  • Precession Equipments
  • Call Phone Networks

Silent Features

  • Advanced Micro Controller Technology
  • High Reliability
  • Very High Efficiency No Effect Of Power Factor
  • Suitable For Balanced And Unbalanced Loads
  • Generator Compatibility
  • Error Log For Last 100 Fault Events In The Stabilizer
  • Better Efficiency >98% Achieved By Use Of Electrolytic Copper And Prime Grade Lamination
  • Outdoor And Indoor Modals Are Available

Advantages Of Micro Controller Circuit

  • Fast Correction (<40 Ms)
  • Advanced Technology
  • Wide Operating Frequency (40-65hz)
  • Real Time Correction Enables Stable Output Even At Non Sinusoidal Wave Forms
