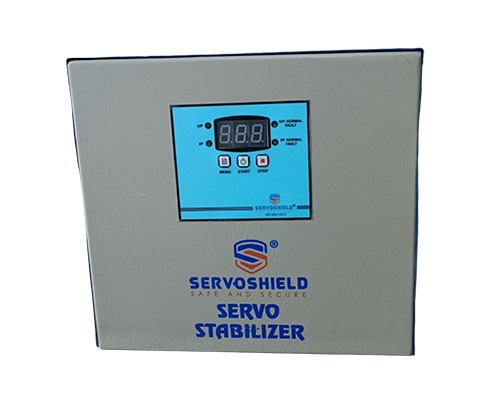

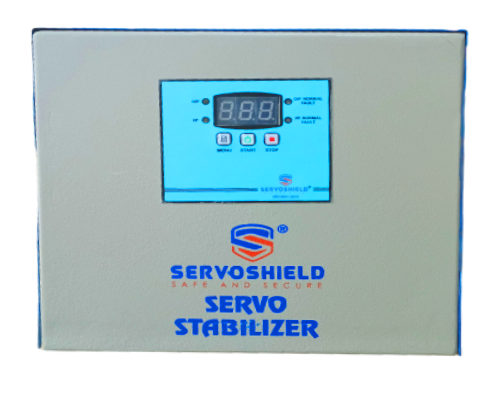

The Servo Stabilizer - Single Phase is a reliable solution for maintaining stable voltage in single-phase electrical systems. It protects sensitive electronic equipment, ensuring consistent power output. With advanced servo motor technology, it automatically adjusts voltage levels to provide a steady power supply. Its compact and durable design makes it suitable for various applications. Easy to install and operate, it safeguards electrical appliances from voltage surges. Invest in the Servo Stabilizer - Single Phase for uninterrupted power supply and prolonged device lifespan.
Specifications
- Capacities : 1 KVA to 20 KVA (air cooled)
- Input Voltage: 170 to 270v or specified by the customer
- Output Voltage : 230v single phase (can be set anywhere between 220v-240v)
- Output Voltage Regulation : ±1% of set voltage over the specified input range from no load to full load
- Correction Speed : 35v/sec or specified by the customer
- Input Frequency : 47 to 53 HZ
- Efficiency : Better than 98%
- Insulation : Class F
- Effects Of Load Power Factor : Nil
- Output Wave Form : Extra reproduction of the input
- Wave Form Distortion : Nil
- Operating Temperature : 50°c
- Type Of Cooling : Air cooled/oil cooled
- Mode Of System : Fully automatic
Standard Protections
- + Low Voltage Protection
- + Over Load And Short Circuit Protection
- + Audio Alarm
- + High Voltage Protection
Optional Protections
- + Manual By Pass Protection
- + Surge/Spike Suppressor
Indications
- + Output Voltage
- + Input Voltage
- + Input
- + Output
- + Set
